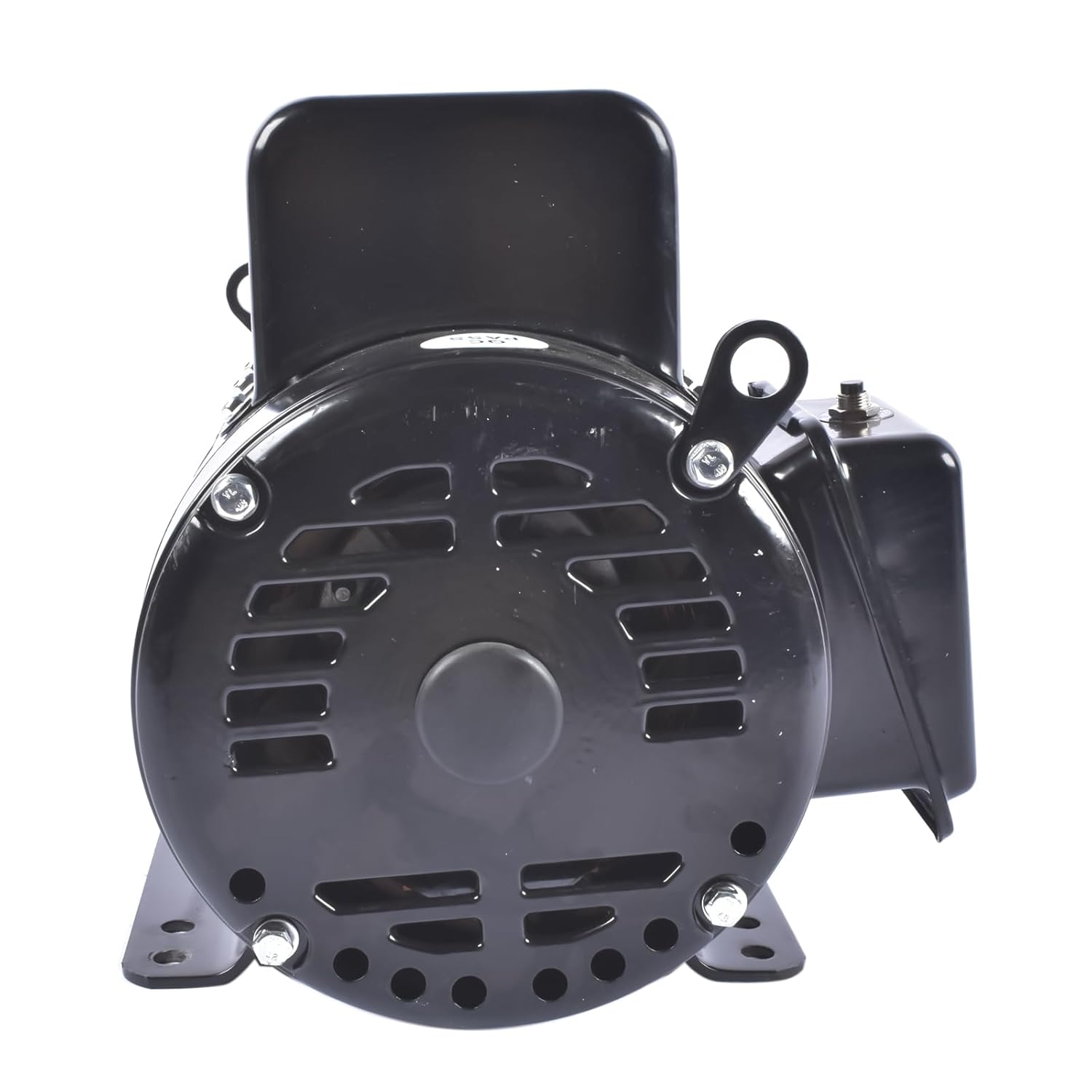

7.5HP Air Compressor Electric Motor, 3450RPM, 208V-230 V, Single-Phase, 1-1/8" Keyed Shaft, 2-3/4" Shaft Length, 184T Frame, CW/CCW Rotation Weonefit

How to Choose the Right Motor for Your Application1. Amperage – Match the full-load amp (FL Amp) rating within 10% of the original motor.2. Frame Size – Must match exactly; incorrect sizing leads to motor failure.3. Phase & Voltage – Use the same phase and voltage (e.g., 1-phase 230V motors require ≥208V to avoid overheating).4. RPM – Should be close (e.g., 3450-3550 RPM for a "3600 RPM" motor). Mismatched speeds can damage equipment.5. Shaft Diameter – Measure with a tape measure to reuse the original pulley.Note the following1: To exclude whether the customer's load is normal, whether it exceeds the actual power of the motor.2: Whether the power line is thick enough, it must be above line 10.3: Whether the relay is large enough, at least 60A.SpecificationAC Frequency Rating: 60 HzReversible/Non-Reversible: ReversibleNominal Rated Input Voltage: 208V-230 VRated Load (HP): 7.5Special Motor Construction: Spindle MotorCurrent Type: ACShaft Diameter: 1-1/8 inEnclosure Type: ODP (Open Drip-Proof)AC Phase: Single PhaseInsulation Class: F (Max 311°F)Mounting Type: Base-MountedPole: 2Amps: 33.4-29.6 AAC Motor Type: Induction/AsynchronousBase RPM: 3450RPMIP Rating: IP23Shaft Length: 2-3/4 inProtector: NonHousing Material: Cast iron shellModel: Electric MotorIEC Frame Size: 184TNet Weight: 79 lbPackage List1x 7.5HP Electric Motor1x Manual(As Pics Shown)

• 【High Performance】: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 184T Frame CW/CCW
• 【Frame Type】: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length
• 【Rotation Direction】: CW/CCW
• 【ODP (Open Drip-Proof)】: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
• 【Customer Service】: We prioritize product quality and are always committed to customer satisfaction. If you encounter any problems, we are always at your service!
