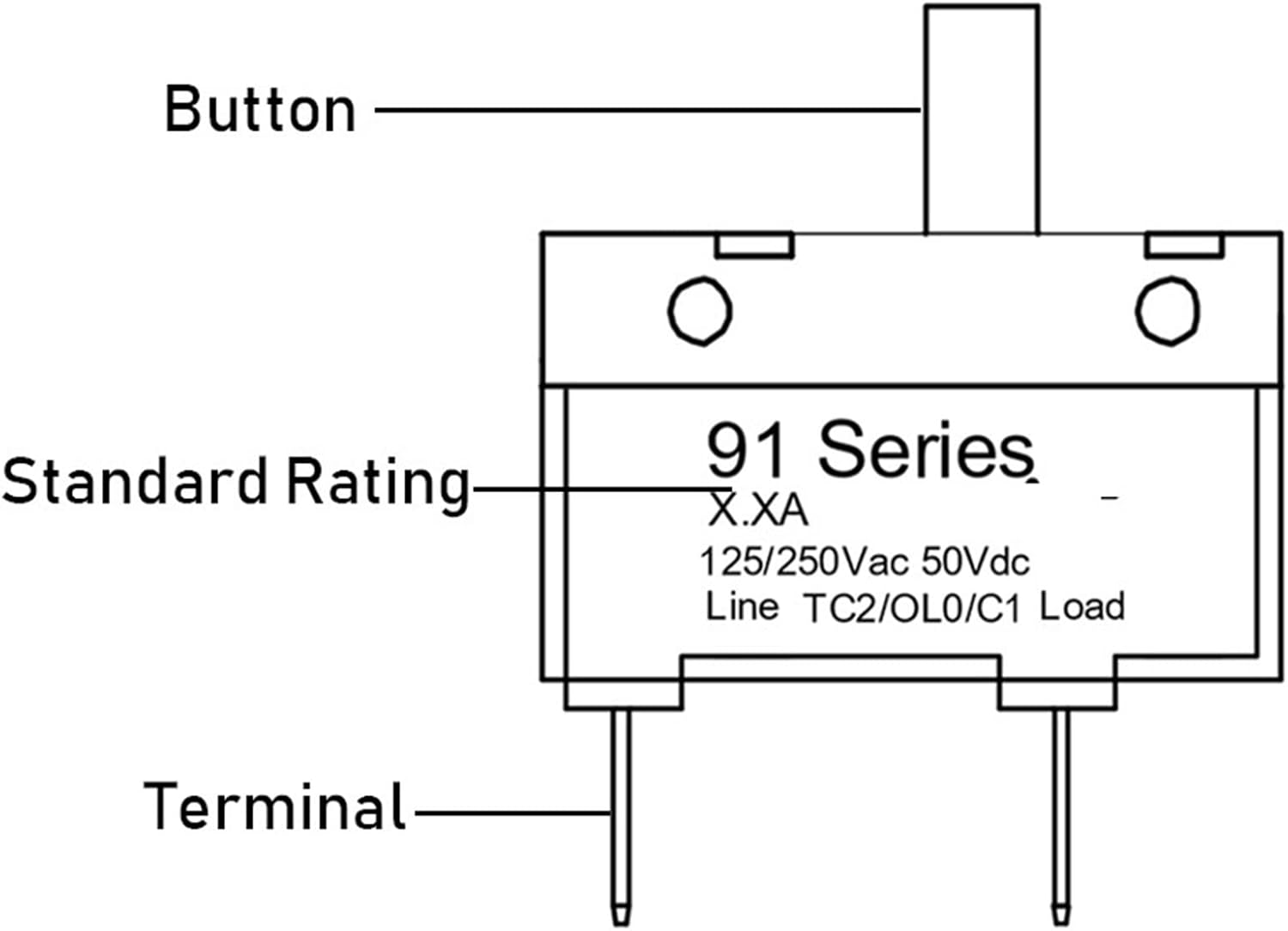

MOBYAT 2.75amp Mini Circuit Breaker Manual Reset Thermal Overload Protector 4Pcs (Size : 3.15A)

Thermal Circuit BreakersProduct Description Current Rating Range 0.5~10A Input Voltage rating 125/250VAC,32VDC Withstand voltage strength <;0.5mA Certification CUL UL TUV CCC VDE Insulation resistance 500VDC 1Min >100M Rated short-circuit capacity 125VAC/1000A;250VAC/1000A Rated breaking capacity 6times rated current Reset Manual Push Reset Technical dataCurrent rating range:0.5~10AInput voltage rating :125/250VAC; 32/50VDCInterrupting Capacity : 125/250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overloadInsulation co-ordination:Rated impulse withstand voltage 2.5kVDielectric Strength:> 1.500VAC/min.Insulation Resistance:>100MOHM (DC 500V)Degree of protection:Terminal area IP00, operating area IP40Mechanical/EnvironmentalDataOperating Ambient Temperature: -10 to +60 Mounting: Various options. See Ordering Information and drawingsTermination: 250''(6.35mm)quick connects or solder terminalsCalibration(at25)100% of Rated Current: Hold , No Trip;150% of Rated Current: Trip Within 1 Hour;175% of Rated Current: 2.0-10.0 sec Trip;200% of Rated Current: 1.1-5.0 sec TripApprovalApproval & File No Rated current Rated voltageCUL UL E155159 05100A 125250VAC; 50VDCTUV SUD B150158611006 0.5-10.0A 125/250VAC; 50VDCVDE 40036160 1.0-10.0A 125/250VACTypical applicationsTarnsforms, Motors, Battery chargers, Power supplies,appliances, extra low voltage systems, machinery.Related Products 88 series 91 series 92 series 94n series 98 series ar serie

• Thermal Circuit Breakers
